Building an Enigma Machine in ClojureScript

The Enigma Machine is a typewriter-sized substitution encryption device used by Germany in World War 2. It was so important to the war-time efforts that work carried out by Alan Turing at Bletchley Park to decode the resulting ciphers helped end the war. For years I have been fascinated by this device, and thought it would be interesting to explore implementing a web-based Enigma Machine using ClojureScript. I also thought it would be a great opportunity to explore how I can use Property-based testing to help garner confidence from the resulting implementation.

You can experiement with the final implementation here, and the source code is available in its entirety on GitHub to review.

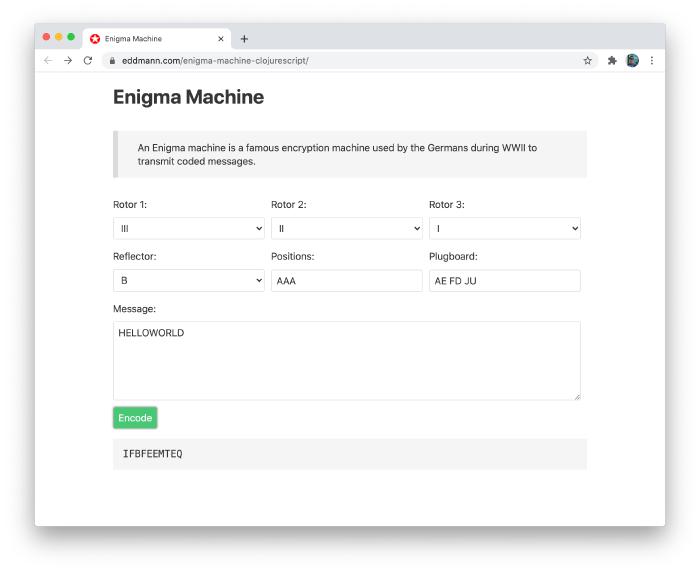

Web-based Engima Machine

How it works

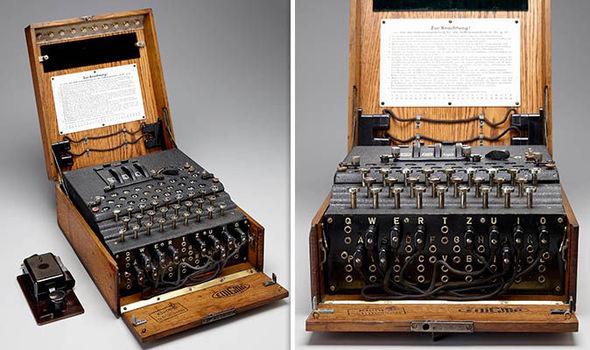

At its most basic (as many variations appeared over the years) the machine is composed of a Keyboard, Lamp Board, three Rotors, a Reflector and a Plugboard (as pictured below). Using a pre-shared machine configuration (Wheel order, Ring settings and Plug connections), when an operator presses a key on the Keyboard a seemingly random letter elluminates on the Lamp Board. With these key presses forming a desired message, the resulting cipher is then sent via an agreed (often insecure) channel to interested parties. Using a similarly configured Enigma Machine the recipient is able to follow the same process as the sender, except upon each key press the original message letter will ellumiate on the Lamp Board. With the combination of the Rotors, Reflector and Plugboard there are a staggering 158,962,555,217,826,360,000 paths a letter can take to be substituted!

Enigma Machine

I will defer to these great resources of which I found very useful in helping to elaborate on the inner workings of the Enigma Machine. With a basic understanding of how the machine works in place we can now move on to modelling this behaviour in code.

The Machine

We will begin with what I feel is the heart of the Enigma Machine, the stepped Rotors. Comprised of three connected Rotors, the desired pressed keys wiring forms a circuit based on the current positioning of the Rotors. Within code we are able to represent this as hash-map like data-structures, where-by we rotate the given Rotor based on a specified step letter and position within the Rotor collection.

(def ^:private alphabet (seq "ABCDEFGHIJKLMNOPQRSTUVWXYZ"))

(def rotors
         :in   alphabet
         :step \Q},
         :in   alphabet
         :step \E}
         :in   alphabet
         :step \V}})

(defn- step? [rotor]
  (= (:step rotor) (first (:in rotor))))

(defn- rotate-rotor [rotor]
  (let [rotate #(concat (rest %) [(first %)])]
    (-> rotor
        (update :in rotate)
        (update :out rotate))))

(defn- rotate-rotors [[one two three]]
  (let [step-one? (step? one)
        step-two? (step? two)]
    [(rotate-rotor one)
     (if (or step-one? step-two?) (rotate-rotor two) two)
     (if step-two? (rotate-rotor three) three)]))

(defn- passthrough-rotors [rotors letter]
   (fn [letter rotor]
     (->> letter
          (get (zipmap alphabet (:out rotor)))
          (get (zipmap (:in rotor) alphabet))))

Using the above code we define three of the original Rotors (with the scrambled wiring represented as in and out), providing the behaviour necessary to rotate and pass a letter through the given Rotor collection. With the use of hash-maps we are able to clearly see how the machine used substitution to form the resulting cipher.

To complete the circuit and send the current back through the (inverted) Rotors we use a supplied Reflector. These use simple static substitutions which can be represented as hash-maps like so.

(def reflectors
  {:A (zipmap alphabet (seq "EJMZALYXVBWFCRQUONTSPIKHGD"))
   :B (zipmap alphabet (seq "YRUHQSLDPXNGOKMIEBFZCWVJAT"))
   :C (zipmap alphabet (seq "FVPJIAOYEDRZXWGCTKUQSBNMHL"))})

From here, we can now succinctly declare how a chosen letter (key press) traverses through the machine and returned as a cipher to the operator.

(defn- invert-rotor [rotor]
  {:in   (:out rotor),
   :out  (:in rotor),
   :step (:step rotor)})

(defn- encode-letter [{:keys [rotors reflector plugboard]} letter]
  (let [plug            #(get plugboard % %),
        reflect         #(get reflector %)
        inverted-rotors (reverse (map invert-rotor rotors))]
    (->> letter
         (passthrough-rotors rotors)
         (passthrough-rotors inverted-rotors)

You can see how we thread the letter through the Plugboard, passing up and down the currently configured Rotors (by way of the Reflector) and then through the Plugboard to attain the resulting cipher letter. We will soon be able to use this function to iteratively produce a cipher of an entire message. Before we do this however, as explained at the beginning of this post, we need a means of configuring the machine based on an agreed-upon setup. This is achieved using the code below.

(defn- setup-plugboard [plugboard]
  (merge plugboard (map-invert plugboard)))

(defn- setup-rotors [rotors positions]
   [(setup-rotor [rotor position]
      (if (= (first (:in rotor)) position)
        (recur (rotate-rotor rotor) position)))]
    (map setup-rotor rotors (seq positions))))

(defn- setup-machine [machine]
  (-> machine
      (update :plugboard setup-plugboard)
      (update :rotors setup-rotors (:positions machine "AAA"))
      (assoc :cipher [])))

With the assumption of the client code supplying us a desired machine setup, we are able to internally configure the starting positions of the chosen Rotors and Plugboard mapping for use with encoding/decoding a message. Finally, based on a supplied machine configuration (which has been setup using the code above) we are able to reduce the message into its cipher counterpart.

(defn encode-message [machine message]
  (->> (seq message)
        (fn [machine letter]
          (let [machine (update machine :rotors rotate-rotors)]
            (update machine :cipher #(conj % (encode-letter machine letter)))))
        (setup-machine machine))
       (apply str)))


Now we have modelled the behaviour of the machine we can assert its correctness by-way of testing the public API - the encode-message function. We will first do this by performing a couple of basic assertions which centre around the inclusion and exclusion of a Plugboard mapping.

(deftest encode-message-with-empty-plugboard
       {:rotors    [(:III rotors) (:II rotors) (:I rotors)]
        :positions "AAA"
        :reflector (:B reflectors)
        :plugboard {}}

(deftest encode-message-with-plugboard
       {:rotors    [(:III rotors) (:II rotors) (:I rotors)]
        :positions "AAA"
        :reflector (:B reflectors)
        :plugboard {\A \B}}

We could expand upon this test-suite greatly, but fundamentally each test being static (example based) there could be no end to the possible tests we could write. Based on this reasoning I thought it would be a very interesting exercise to employ Property-based testing to help garner ever-more increasing confidence in our implementation. This form of testing methodology can be described as:

Property-based tests are designed to test the aspects of a property that should always be true. They allow for a range of inputs to be programmed and tested within a single test, rather than having to write a different test for every value that you want to test.

With this in-mind, there are a couple of distinct properties that regardless of what machine setup or message we provide should always hold true. Using the spec libary (which was inspired by QuickCheck) we are able to model two of these properties like so.

(def gen-char-upper-alpha
  (gen/fmap char (gen/choose 65 90)))

(def gen-string-upper-alpa
  (gen/fmap clojure.string/join (gen/vector gen-char-upper-alpha)))

(def gen-machine
  (gen/hash-map :rotors (-> (vals rotors) gen/elements (gen/vector 3))
                :positions (gen/fmap clojure.string/join (gen/vector gen-char-upper-alpha 3))
                :reflector (-> (vals reflectors) gen/elements)
                :plugboard (->> (gen/vector-distinct gen-char-upper-alpha {:min-elements 0 :max-elements 26})
                                (gen/fmap #(if (odd? (count %)) (rest %) %))
                                (gen/fmap #(apply hash-map %)))))

(defspec cipher-is-same-length-as-message
  (prop/for-all [machine gen-machine
                 message gen-string-upper-alpa]
    (let [cipher (encode-message machine message)]
      (= (count message) (count cipher)))))

(defspec encoded-cipher-matches-message
  (prop/for-all [machine gen-machine
                 message gen-string-upper-alpa]
    (let [cipher (encode-message machine message)]
      (= message (encode-message machine cipher)))))

Providing a means of producing a valid randomly generated machine configuration - we can assert that for any given instance that the cipher message should be the same length as the plain-text message, and we should be able to encode/decode the cipher message to the original plain-text message. We can now leave it up to the spec library to produce a large random selection of valid machine configurations and ensure the correctness of our propositions - garnering ever more confidence in the code upon each test run. One of the true powers of this testing approach is how if a property does not seem to hold true for a given test assertion, the library is able to shrink the input down as best it can to the problem input.

The User Interface

Having modeled and verified the correctness of the machine behaviour we can move on to providing the client with a user interface. For this we will be using Reagent, which provides ClojureScript bindings for the React library. So as to not overload this article with code, I have decided to intentionally omit going through the client implementation in the step-by-step fashion as done above. Instead I ask for you to head over to the app.cljs implementation which describes how we use Reagent to interact with our machine implementation. Below you will see how we combine all the child input components declared in app.cljs, into the stateful parent component which is rendered to the DOM.

(defn- app []
  (let [rotors    [(r/atom "III") (r/atom "II") (r/atom "I")]
        reflector (r/atom "B")
        plugboard (r/atom "")
        positions (r/atom "AAA")
        message   (r/atom "HELLOWORLD")
        cipher    (r/atom "ILBDAAMTAZ")
        encode    (fn []
                     {:rotors    (map #((keyword @%) machine/rotors) rotors)
                      :positions @positions
                      :reflector ((keyword @reflector) machine/reflectors)
                      :plugboard (apply hash-map (seq (clojure.string/replace @plugboard " " "")))}
    (fn []
        {:class "columns"}
        (doall (map-indexed select-rotor rotors))]
        {:class "columns"}
        (select-reflector reflector)
        (positions-input positions)
        (plugboard-input plugboard)]
       (message-textarea message)
       [:button {:on-click #(reset! cipher (encode))} "Encode"]
       [:pre @cipher]])))

Making use of Reagent Atoms we are able to statefully store the users intended configuration and invoke the encode-message function when required.


I found modeling this solution in a Lisp using ClojureScript to be very enjoyable. Looking back over the code I find it amazing how a Lisp is able to so succinctly and elegantly document the behaviour of the machine. The more I develved into the solution to this problem space the more I felt the functional approach mapped so well. Being able to explore Property-based testing in this fashion was a great experience, and from it I am able to see how well it can fit into aspects of daily programming/problems we solve.
